Ergotron® 60-595-062 StyleView® VL Enclosure Wall-Mount Computer Workstation

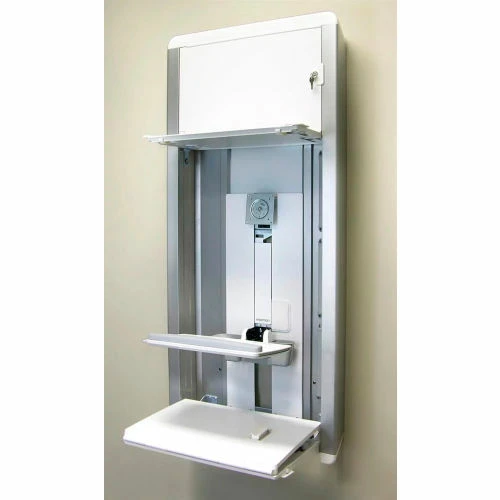

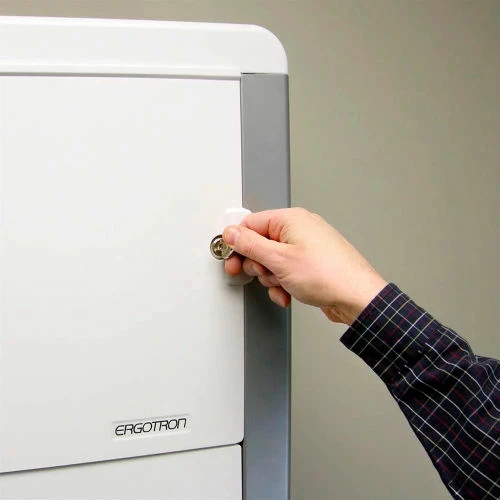

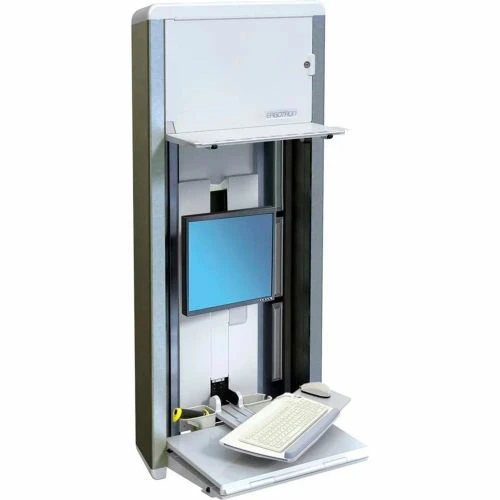

Secure, complete, compact workstation. Perfect for space-constrained patient rooms, the low profile vertical lift provides 9″ (23 cm) of smooth height adjustment and folds into a slim, compact unit when not in use. Its keyless locking mechanism protects patient data for compliance with privacy requirements. The slide-out, negative-tilt keyboard tray enhances user comfort, and the panning capability of the monitor and keyboard promotes patient-caregiver interaction. A unique cable management system conceals and organizes cords, making cleaning a snap!

Specifications:

• Includes wall plate, mounting template, enclosure, vertical lift, slide-out keyboard tray, wrist rest, mouse pouch, scanner holder, internal cable management, batteries, monitor mounting hardware, wall mounting hardware, keys

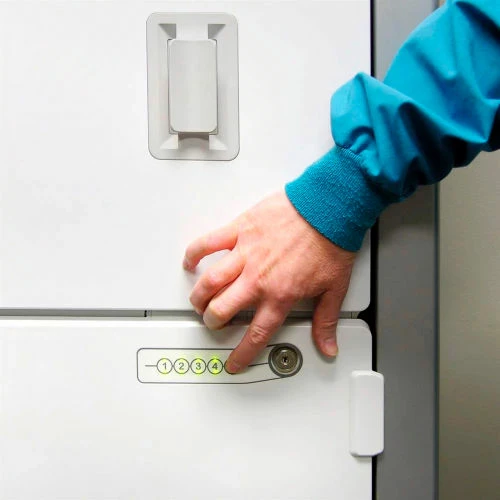

• Easy 4-step installation: 1. Attach wall plate using template; 2. Hang enclosure; 3. Install computer; 4. Set keyless security code
• Listed weight capacity represents total load on Vertical Lift engine, including the monitor and contents of keyboard tray, mouse pouch and scanner holder. Maximum load capacity: monitor pivot = 18 lbs (8.2 kg); CPU compartment = 20 lbs ( 9.1 kg); door/worksurface = 50 lbs (22.6 kg)
• Monitor pans left/right ±5° (based on typical 17″ monitor; will vary with monitor size)
• Nine inches (229 mm) of vertical adjustment ergonomically accommodates user heights ranging from the 5% female height to the average male height
• Slide-out mouse tray includes built-in pad surface
• Negative-tilt keyboard tray is adjustable 0° to -10°; folds up flat when stored
• Keyboard tray pans left/right up to 120°
• Integrated mouse and scanner holders
• Cable access openings allow cables to pass through top and bottom of enclosure
• CPU compartment is top-vented for maximum CPU heat dissipation
• Open-back design allows wall outlets and other ports to be contained within boundary of enclosure
• Accommodates most small form factor and ultra small form factor CPUs
• Maximum CPU physical dimensions: 13.75″ W x 12.75″ H x 3.75″ D (34.9 x 32.4 x 9.5 cm)
• Maximum monitor physical dimensions: 20.7″ W x 14.7″ H x 2.75″ D (52.6 x 37.3 x 7.0 cm)
• Mounting Standards: VESA FDMI, MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
• VESA hole pattern should be on center on back of monitor
• Plastic/polycarbonate components are compliant with the surface flame spread and smoke development requirements from the NFPA 101 Life Safety Code interior wall finish requirements
• Product Dimensions: 60.6″ x 27.2″ x 6.75″ (closed) or 20.6″ (open) (154 x 69 x 17 or 53 cm)
• Warranty: Five (5) years; One (1)-year warranty on all electronic components (excludes AA batteries)
